UviTec UV254 Probe
Last updated: 30 May 2025
208 Views

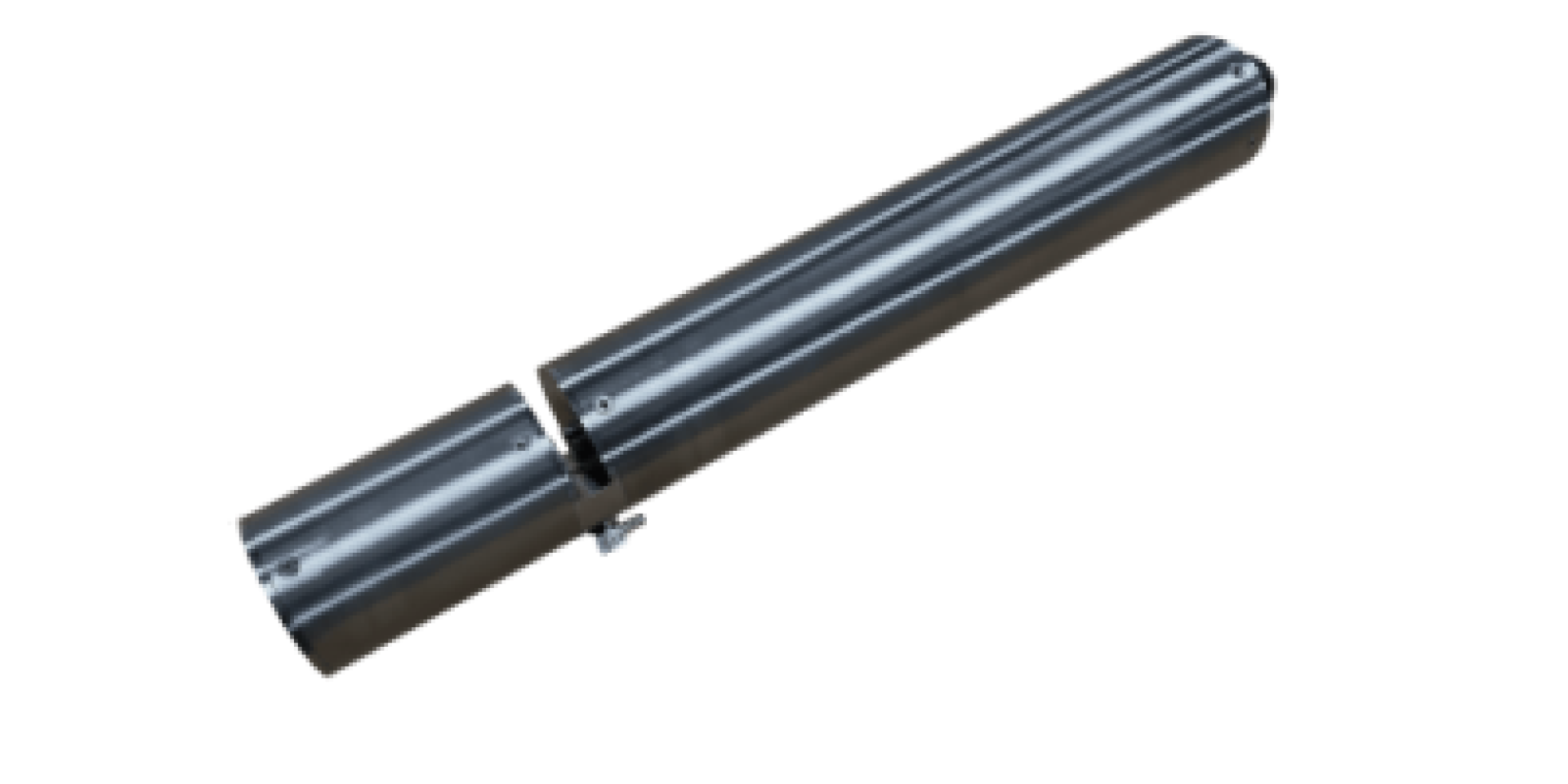

The UviTec UV254 submersible probe provides affordable real-time measurement of organic matter in water or wastewater. The probe with patent-pending technology for superior measurement performance utilizes light at the 254 nm and 850 nm wavelengths for measurement. The probes rugged body is built to withstand harsh environments, with titanium or stainless steel options. Designed to meet the needs of many monitoring applications, it offers multiple path length selections for the desired measurement range.
Features & Benefits
Features & Benefits
- Affordable real-time UV254 organics monitoring
- Dual wavelength probe uses patent-pending technology to provide superior measurement performance
- Robust submersible probe with titanium or stainless steel housing
- Operator friendly, low maintenance design
- Reagent free optical measurements

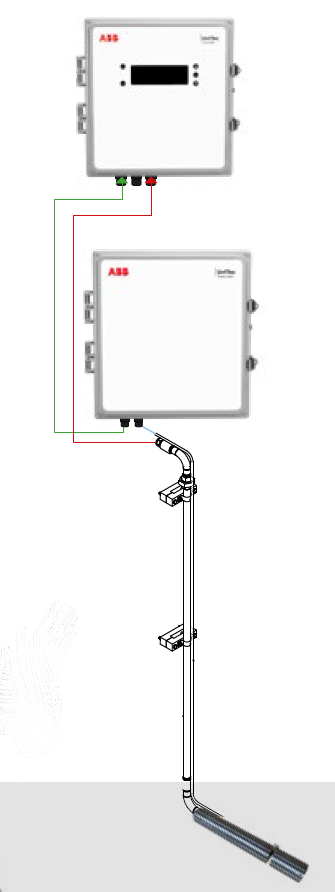

EXAMPLE CONFIGURATION
-Simple to install and operate-UviTec Controller
For affordable, user friendly operation and control
-UviTec Probe Clean System
For low maintenance automatic cleaning
-Mounting Kit
For secure mounting to a tank or open channel wall, or railing
-UviTec UV254 Probe
For real-time UV254 continuous organics measurement
