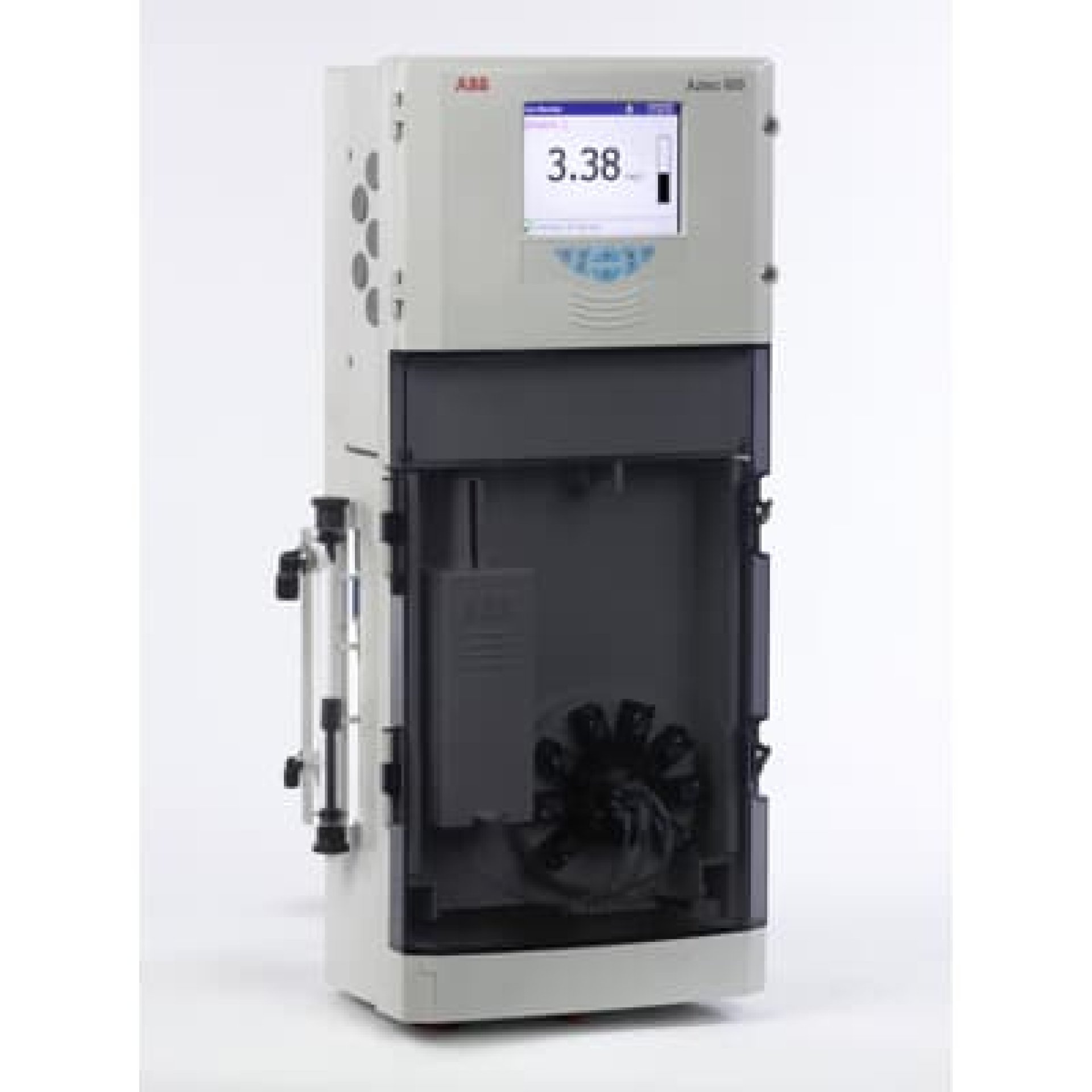

Iron analyzer Aztec AW633

Last updated: 16 Sept 2025
416 Views
  • Measurement range
0 to 5 ppm Fe (0 to 5 mg/l)
  • Chemical Method
Tripyridyl-triazine (TPTZ)
  • Background color correction
Compensated at the measurement wavelength
  • Measurement frequency
1 to 6 measurements per hour (User-selectable)
  • Accuracy / maximum measured error
±5 % of reading or ±0.005 ppm (whichever is the greater)
  • Repeatability
±5 % of reading or ±0.005 ppm (whichever is the greater)
  • Resolution
0.001 ppm or 1 ppb
  • Measurement units
mg/l, ppm, ppb, μg/l
  • Calibration

2-point, automatic calibration
