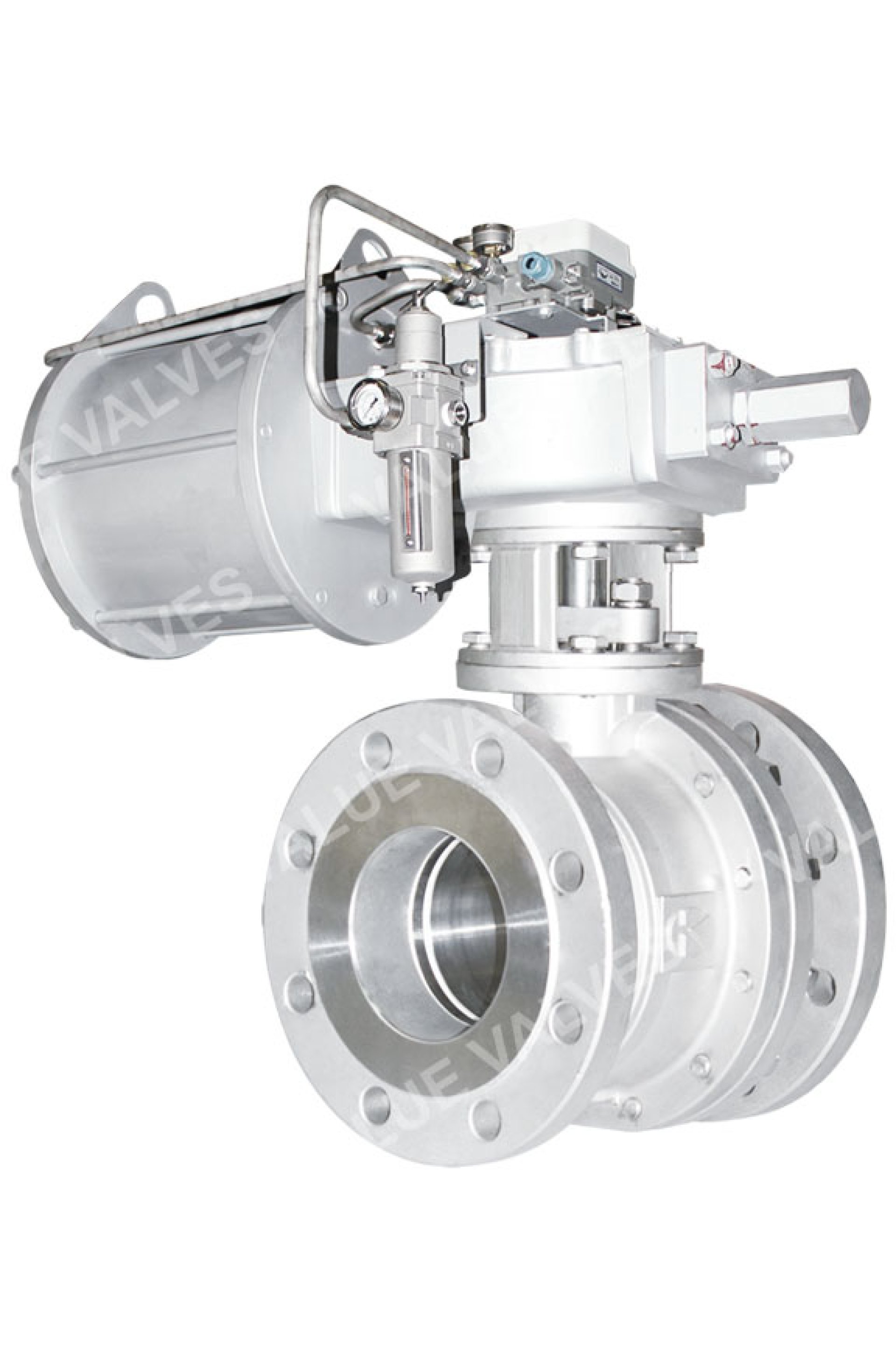

VF-BF Ball Valves

Last updated: 19 Jun 2025

349 Views

Excellent shutoff design and unobstructed flow path.
Ball valves are designed and equipped with blow out proof stem, lower and stable torque, and ISO 5211 mounting surface.
Every ball valve has an independent tag-number to track the documents of materials, torque and inspection reports.
Guaranty 100% hydraulic leakage test before release.
Anti-Static design ball to stem and body.
Fire safe design, bi-directional, two-piece split body, floating type.

Specifications:

Body Connection: Flange Type
Body Shell Thickness: ASME B16.34
Mounting: ISO 5211
Design & Pressure: API 6D, API 608, ASME B16.34
Face to Face: ANSI B16.10
Inspection and Testing: API 6D, API 598
Leakage Class: ISO 5208 rate A
Flange Drilling: ASME B16.5 150LB/300LB, JIS 10K/16K

It is suitable for Petroleum and Refining, Chemical, Power and Energy, Steel Mill, Mining Industry.
